NOA-ControlEngine
Our SEMODIA NOA-ControlEngine is supplied as a C++ software development kit (SDK).
It combines all the necessary software components to quickly, reliably and flexibly introduce NOA devices (NOA gateways) and NOA M+O sensors (monitoring + optimisation sensors) according to NAMUR Open Architecture recommendations NE175, NE176 and NE177.
Our NOA-ControlEngine can be used to add existing gateways, controllers, Industrial Internet of Things or edge devices, and embedded systems like sensors to your solution portfolio, while your know-how and IP catalogue remain unaffected and protected.
Benefitting from our NOA-ControlEngine
module vendors
plant operators
engineering tool vendors
control system manufacturers
field device vendors
laboratory operators
Your benefits
More opportunities without risk
Expand your plant equipment without affecting your control technology.
Your knowledge is safe
Your plant data is only evaluated in read-only format, so your know-how remains protected.
Free and protected at the same time
The interface created by our NOA-ControlEngine is open and secure at the same time.
Monitoring 2.0
Our NOA-ControlEngine enables effective monitoring.
Next level profitability
The added value of brown field plants can be increased many times.

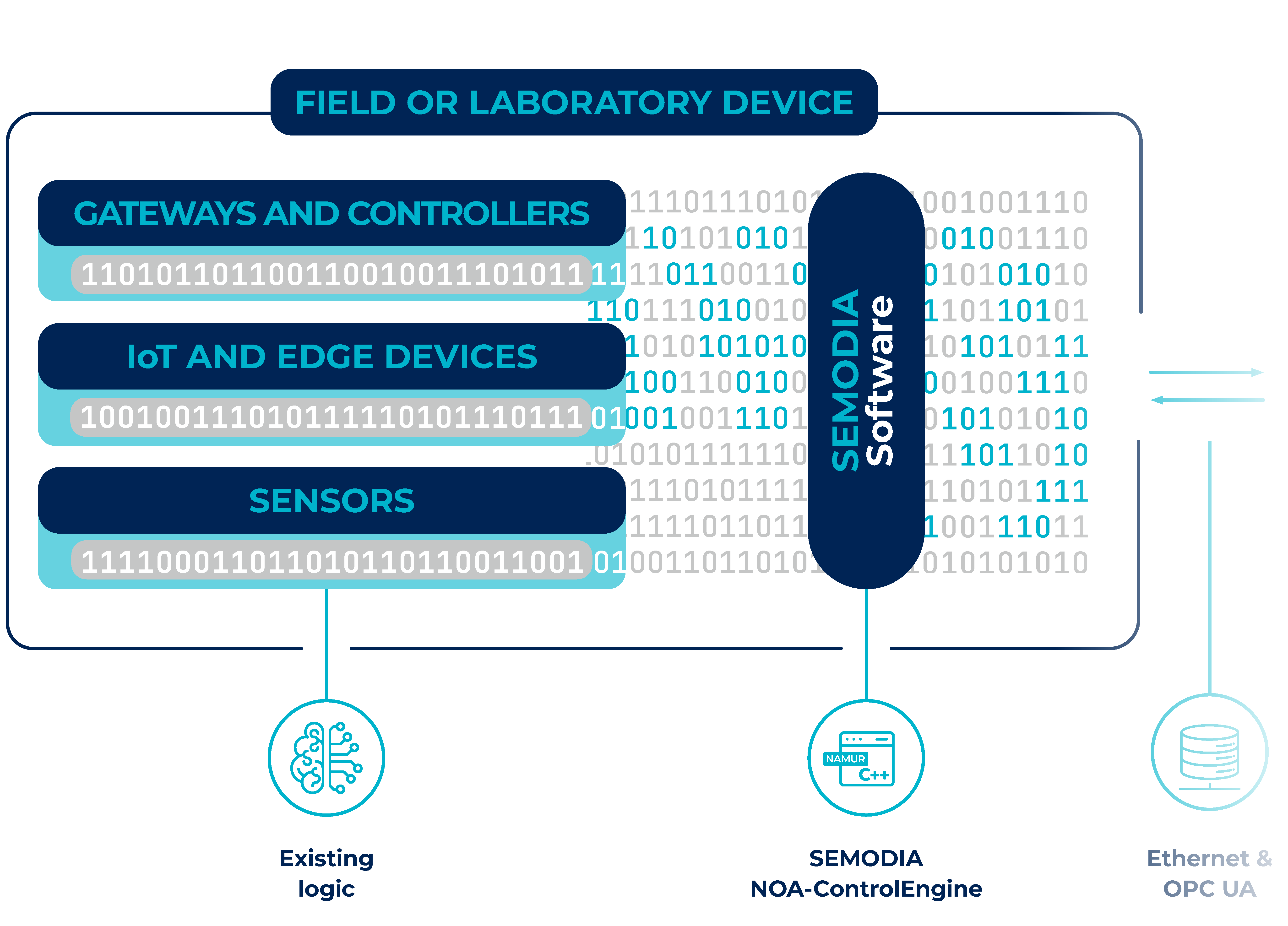

How it works
- Our NOA-ControlEngine runs directly on your field or laboratory equipment, allowing for internal direct access to the data (connection no longer has to be via Modbus RTU, etc.).
- NOA-ControlEngine describes your device by means of a PADIM model in compliance with the NAMUR Open Architecture recommendations.
- Data for aggregation is provided via a secure gateway.
- Data is available to your own monitoring and optimisation tool

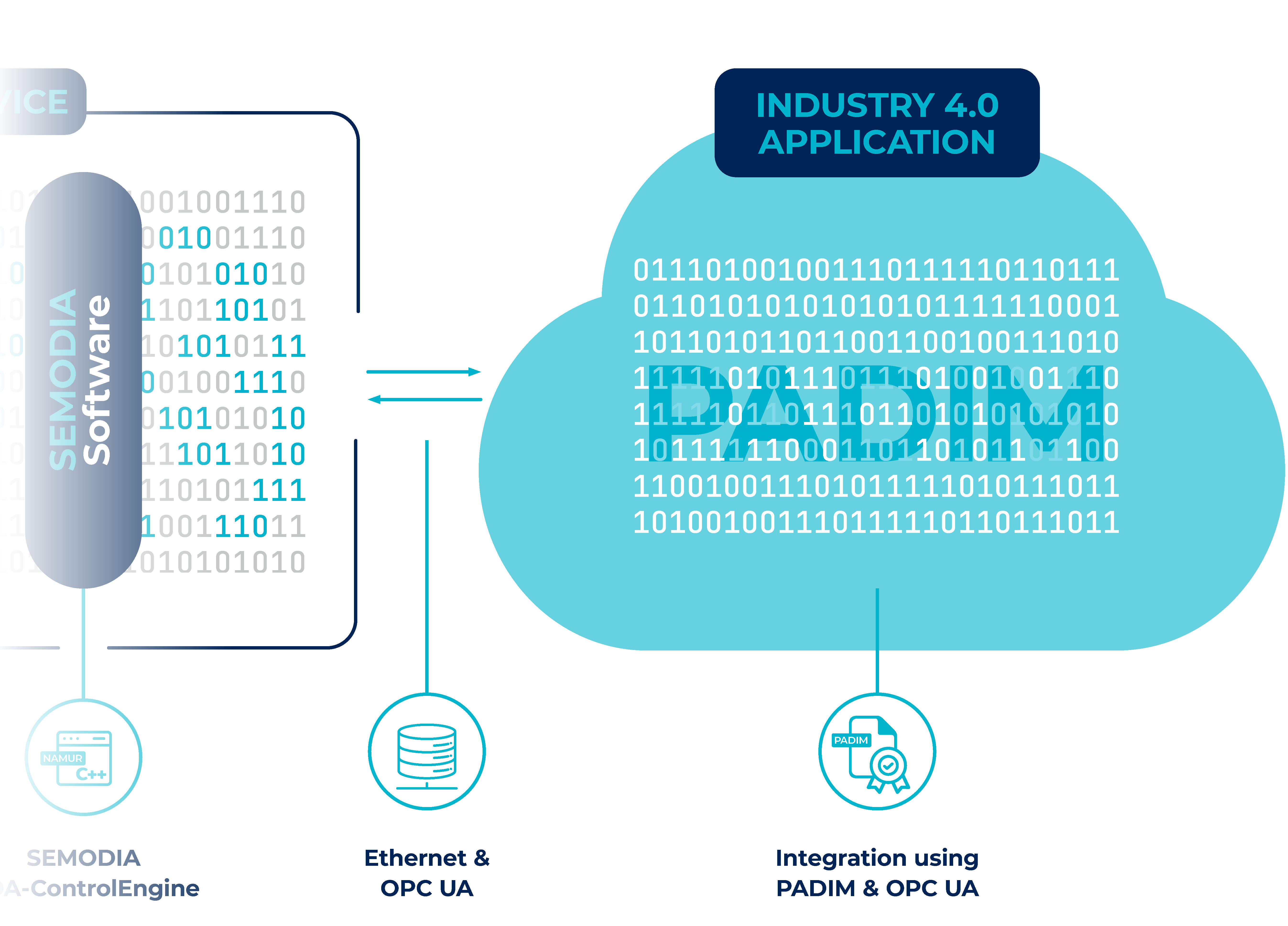

- Data can be transferred to the cloud and evaluated using Industry 4.0 tools
- Our NOA-ControlEngine generates the PADIM model, which is provided via an OPC UA server and is directly integrated into your device.
- After PADIM integration, communication with your field or laboratory equipment runs via Ethernet & OPC UA.
- The interface is open yet at the same time secure
- Your data is evaluated in a read-only format
- It enables you to perform efficient monitoring
Technical details
As a flexible and modern C++ API, our NOA-ControlEngine can be used across platforms.
Our NOA-ControlEngine is based on the same principle as the MTP-ControlEngine, but rather than the MTP information model it is the NOA information model that is standardised in NAMUR recommendation NE176 which is normative.
With its software architecture the NOA-ControlEngine ensures compliance with the Security Gateway requirements according to NE177. Operation of the NOA-ControlEngine does not impact the plant and only offers the possibility of read access to device data.
